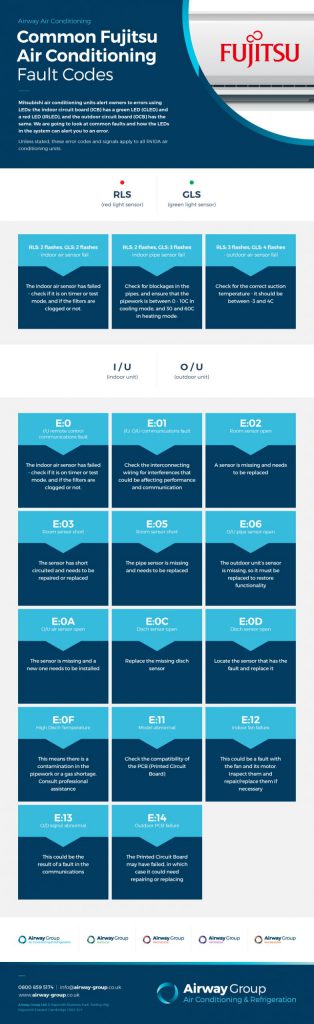

Fujitsu Air Conditioning Fault Codes

Using coloured sensors and error codes, Fujitsu air conditioning units alert users to faults in a simple and clear way. The below are some of the more common Fujitsu fault codes that you may discover on your air conditioning system.

Red light sensor (RLS): 2 flashes, green light sensor (GLS): 2 flashes – Indoor air sensor fail.

The indoor air sensor has failed – check if it is on timer or test mode, and if the filters are clogged or not.

RLS: 2 flashes, GLS: 3 flashes – Indoor pipe sensor fail

Check for blockages in the pipes, and ensure that the pipework is between 0 – 10C in cooling mode, and 30 and 60C in heating mode.

RLS: 3 flashes, GLS: 4 flashes – Outdoor air sensor fail

Check for the correct suction temperature – it should be between -3 and 4C

E:0 – Indoor unit – remote control communications fault

Check wiring of the remote control, there could be interference which is affecting the communication between the unit and remote control.

E:01 -Indoor unit (I/U) – Outdoor unit (O/U) communications fault

Check the interconnecting wiring for interferences that could be affecting performance and communication

E:02 – Room sensor open

A sensor is missing and needs to be replaced

E:03 – Room sensor short

The sensor has short circuited and needs to be repaired or replaced

E:05 – I/U pipe sensor open

The pipe sensor is missing and needs to be replaced

E:06 – O/U pipe sensor open

The outdoor unit’s sensor is missing, so it must be replaced to restore functionality

E:07 – O/U pipe sensor short

Replace the faulty sensor

E:08 – Power source error

The power supply may have a fault – this could be a loose plug or damage to wiring

E:09 – Float switch

The water level is too high, so check your drains for any blockages that will help reduce the water

E:0A – O/U air sensor open

The sensor is missing and a new one needs to be installed

E:0C – Disch sensor open

Replace the missing disch sensor

E:0D – Disch sensor short

Locate the sensor that has the fault and replace it

E:0F – High Disch Temperature

This means there is a contamination in the pipework or a gas shortage. Consult professional assistance

E:11 – Model abnormal

Check the compatibility of the PCB (Printed Circuit Board)

E:12 – Indoor fan failure

This could be a fault with the fan and its motor. Inspect them and repair/replace them if necessary

E:13 – O/D signal abnormal

This could be the result of a fault in the communications,

E:14 – Outdoor PCB failure

The Printed Circuit Board may have failed, in which case it could need repairing or replacing
