Mitsubishi Electric Air Conditioning Fault Codes Explained
Reading Time: 2 minutes
Just like their heavy industry counterparts, Mitsubishi Electric air conditioning units> use a combination of error codes and LEDs to notify the user of a potential fault. Below are some of the more common Mitsubishi Electric air conditioning fault codes that you may notice on your unit.

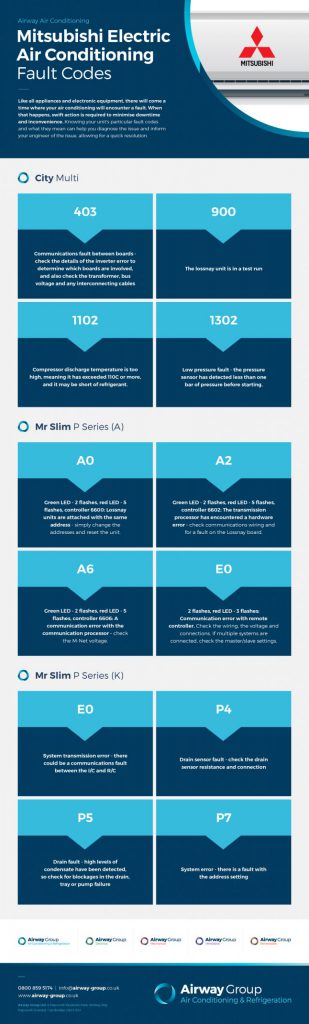

• View in High Quality • Download as PDF
City Multi
403: Communications fault between boards – check the details of the inverter error to determine which boards are involved, and also check the transformer, bus voltage and any interconnecting cables
900: The lossnay unit is in a test run
1102: Compressor discharge temperature is too high, meaning it has exceeded 110C or more, and it may be short of refrigerant.
1301: Low pressure fault – the pressure sensor has detected less than one bar of pressure before starting.
Mr Slim P Series (A)
A0: Green LED – 2 flashes, red LED – 5 flashes, controller 6600: Lossnay units are attached with the same address – simply change the addresses and reset the unit.
A2: Green LED – 2 flashes, red LED – 5 flashes, controller 6602: The transmission processor has encountered a hardware error – check communications wiring and for a fault on the Lossnay board.
A6: Green LED – 2 flashes, red LED – 5 flashes, controller 6606: A communication error with the communication processor – check the M-Net voltage.
E0: Green LED – 2 flashes, red LED – 3 flashes: Communication error with remote controller. Check the wiring, the voltage and connections. If multiple systems are connected, check the master/slave settings.
Mr Slim P Series (K)
EO: System transmission error – there could be a communications fault between the I/C and R/C
P4: Drain sensor fault – check the drain sensor resistance and connection
P5: Drain fault – high levels of condensate have been detected, so check for blockages in the drain, tray or pump failure
P7: System error – there is a fault with the address setting
